Microfluidics Equipment

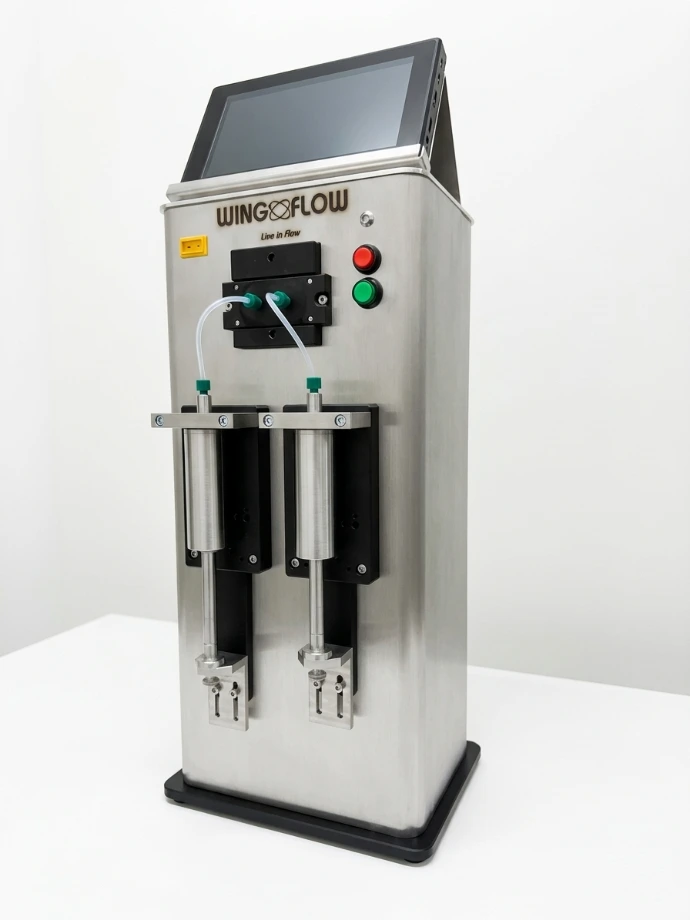

Syringe Pumps

Pump with two syringe modules. Can operate in cross-flow mode or with two separate syringes.

  • Flow rate MIN (with syringe 50 mL): 54 nL/min

  • Flow rate MAX (with syringe 50 mL): 61 mL/min

  • Minimum syringe filling time: 62s

  • Supported syringe sizes: 10 µL - 50 mL

  • Maximum operating pressure:  0.1-200 bar

Download Technical Specification

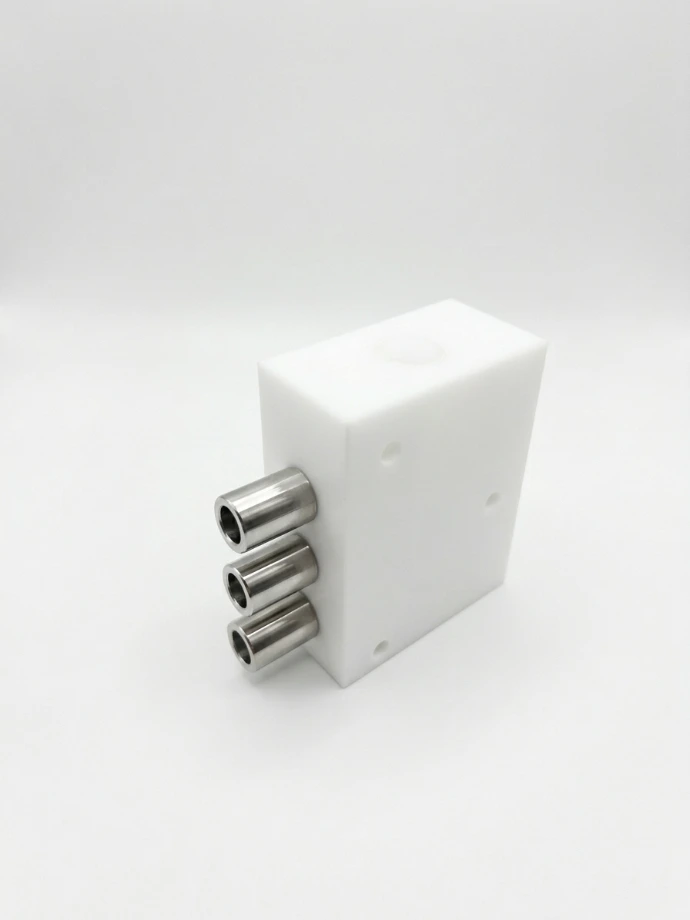

Check Valves

Allows to connect N+1 syringe pumps into a single system without pulsation.

  • Fully analog

  • Flow rate  MAX: 100 mL/min

  • Maximum operating pressure: 50 bar

Download Technical Specification

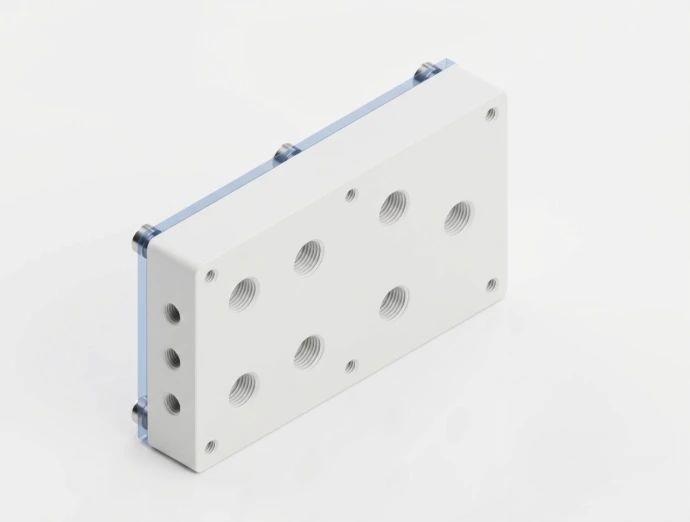

Gas-Liquid Separators

Allows  to separate and remove bubbles from pipes (bubble trap)

  • Fully analog

  • Flow rate MAX: 100 mL/min

  • Maximum operating pressure: 50 bar

Download Technical Specification



With our own production capabilities and assembly operations carried out at our subsidiary company Stark Swiss AG, we maintain full control over quality, timelines, and technical compliance at every stage of the project lifecycle.
